Dosing scales

Dosing scales

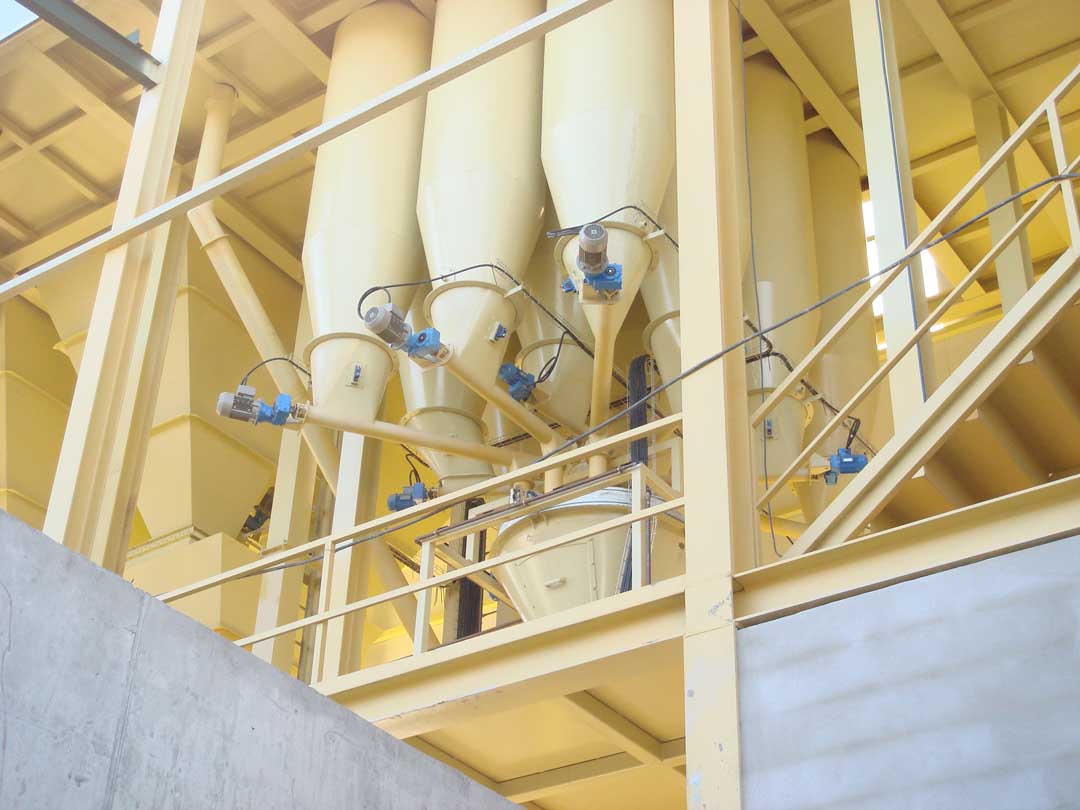

MGN dosing scales have been specially designed to weigh cereals, flours, micro-components and macro-components fast and accurately.

BASCULA-DOSIFICADORA-DSC_2
BASCULA-DOSIFICADORA-DSC_1
BASCULA-DOSIFICADORA-3
BASCULA-DOSIFICADORAS-GRANJA-AVICOLA-GALLEGO-4

Features of the dosing scales:

  • Sheet metal constructed hopper with reinforcements according to the dimensions.
  • Cover plate, made of 3 mm sheet metal, and tube for the support of screw conveyors featuring anti-dust, canvas bellows.
  • 3, 4, or 6 electronic load cells according to the hopper dimensions.
  • The weighing capacity of the dosing scales ranges from 500 to 6,000 kg.
  • Chassis and legs in structural tube.
  • Decompression tube for air.
  • Discharge gates with SMC, UNIVER pneumatic drive.
